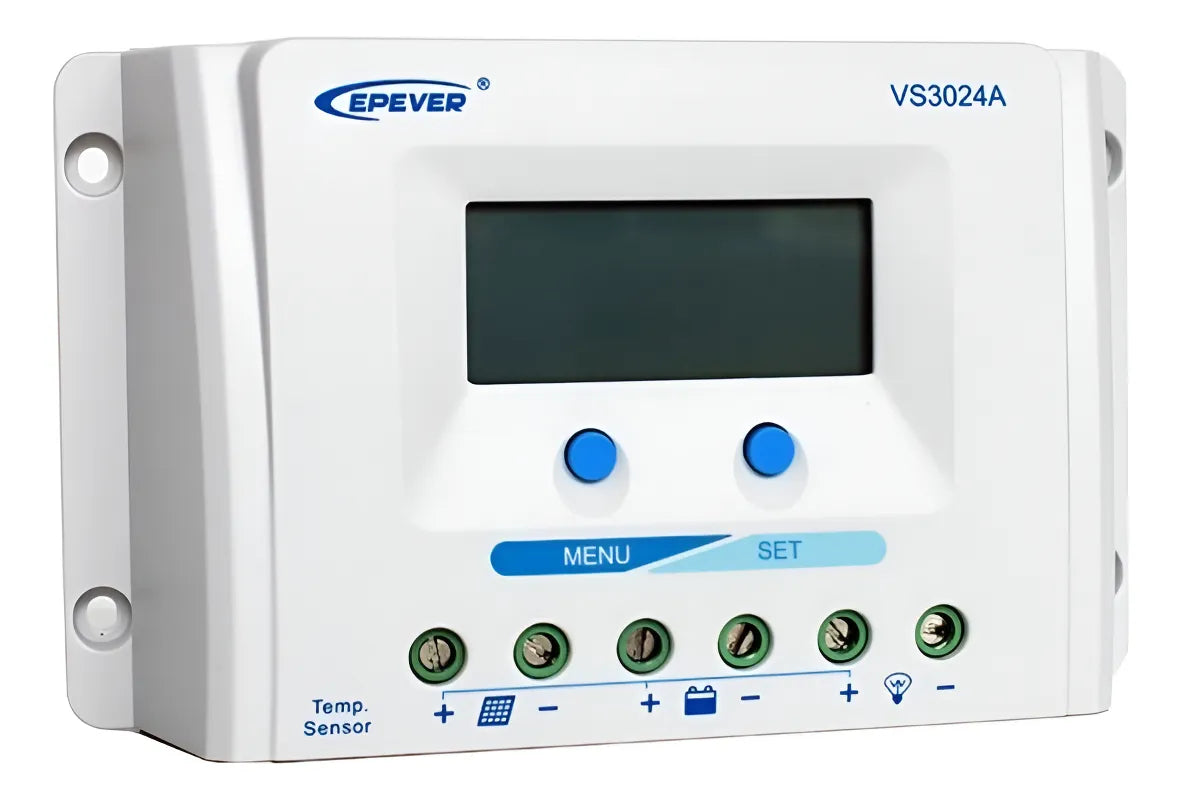

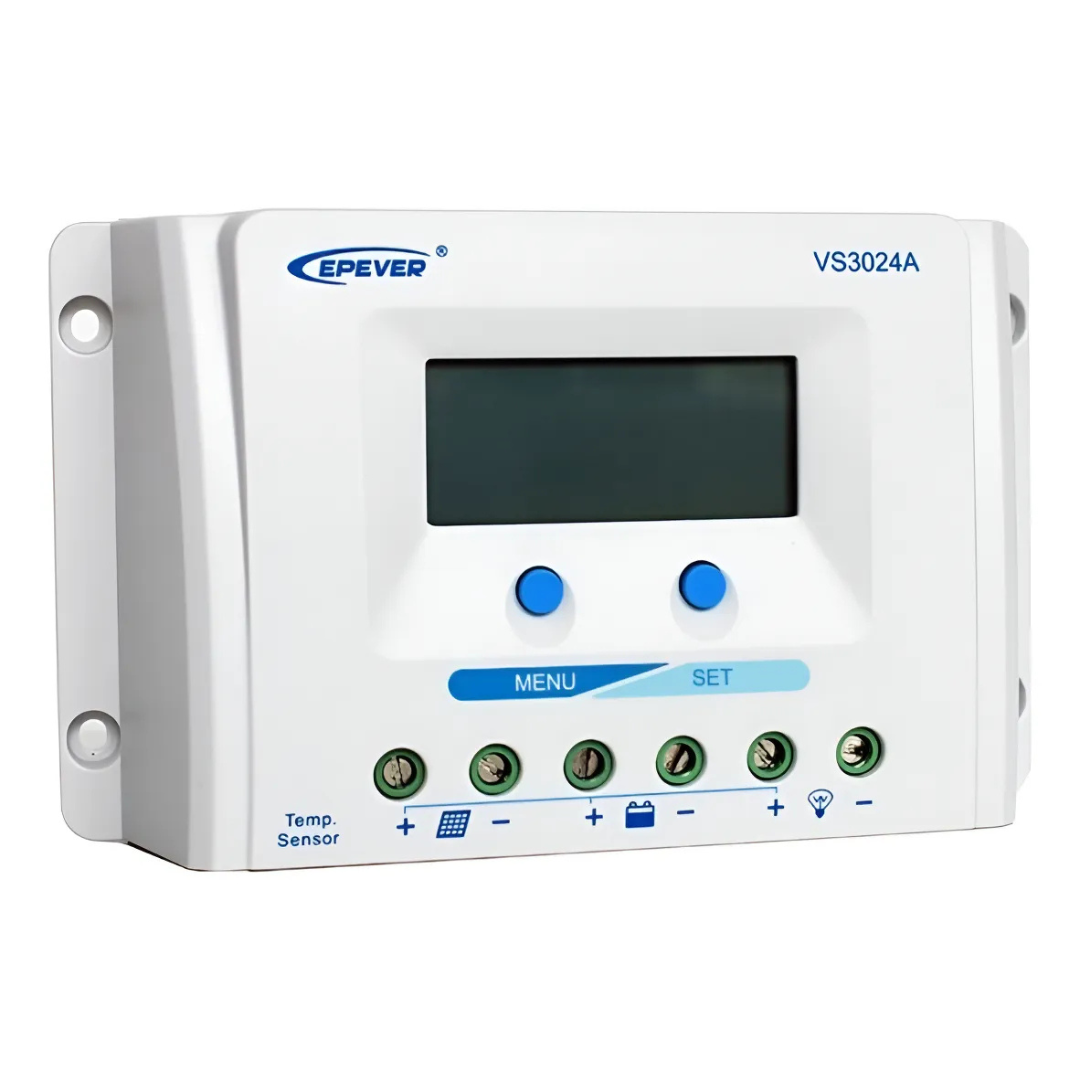

Serie ViewStar-A
. Controlador de carga inteligente PWM, tierra positivo común
. Diseño de la pantalla LCD, que muestra dinámicamente el funcionamiento del dispositivo
. Múltiples modos de control de carga
. Amplia protección electrónica
Nominal system voltage VS**24A 12/24V auto work
Battery input voltage
range
VS**24A 9~32V
Rated charge/discharge
current*
10A 20A 30A
Max. PV open circuit
voltage VS**24A 50V
Battery type Sealed(Default) / Gel / Flooded
Equalize charging
voltage* Sealed:14.6V/ Gel: No/ Flooded:14.8V
Boost charging voltage* Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
Float charging voltage* Sealed/Gel/Flooded:13.8V
Low voltage reconnect
voltage* Sealed/Gel/Flooded:12.6V
Low voltage disconnect
voltage* Sealed/Gel/Flooded:11.1V
Self-consumption =10mA/12V;=18mA/24V; =14.5mA/36V; =17mA
Temperature
compensation coefficient -3mV/¿/2V(25¿)
Grounding Common positive
Overall dimension 142x85x41.5
mm
160x94.9x49.3
mm
181x100.9x59.8
mm
194x118.4x63.8
mm
214x128.7x72.2
mm
Terminals 12AWG(4mm2) 8AWG(10mm2) 6AWG(16mm2) 6AWG(16mm2) 3AWG(25mm2)
Net weight 0.22kg 0.35kg
0.55kg 0.76kg 1.02kg
0.58kg 0.88kg 1.04kg
Enclosure IP30
Working environment
temperature -25¿~+55¿(Product can work continuously at full load)
Humidity range =95% (N.C.)
