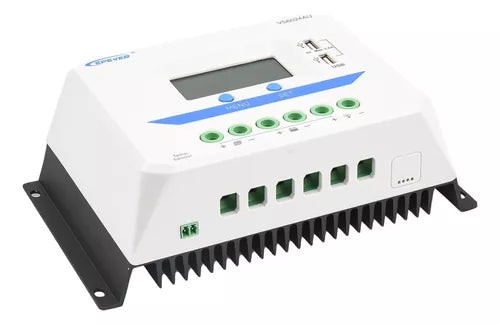

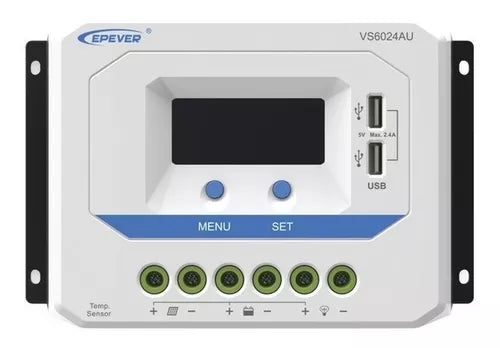

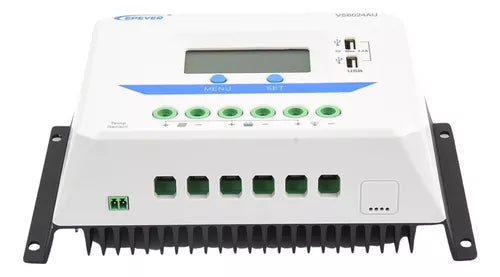

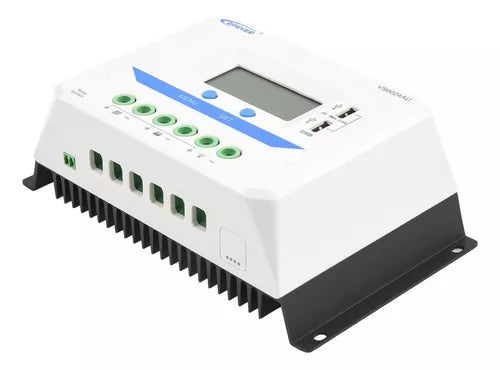

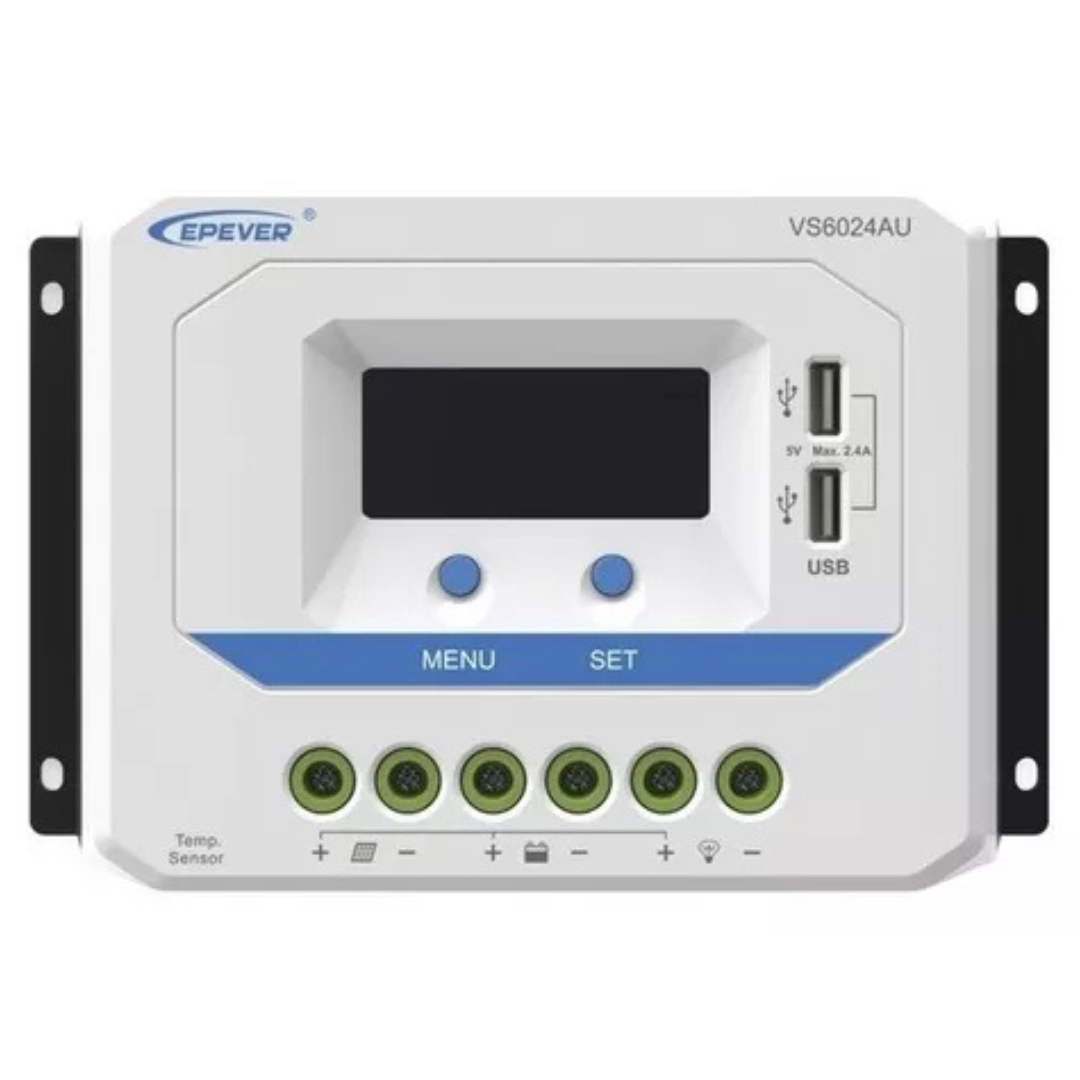

Controlador Epsolar Pwm 12/24v 60 A, Salida Usb

Serie ViewStar-AU
. Controlador de carga inteligente PWM, tierra positivo común
. Doble salida USB, para carga de dispositivos USB.
. Diseño de la pantalla LCD, que muestra dinámicamente el funcionamiento del dispositivo
. Múltiples modos de control de carga
. Amplia protección electrónica
Nominal system voltage VS**24AU 12/24V auto work VS**48AU 12/24/36/48V auto work
Battery input voltage
range
VS**24AU 9~32V VS**48AU 9V~64V
Rated charge/discharge
current*
10A 20A 30A 45A 60A
Max. PV open circuit
voltage VS**24AU 50V VS**48AU 96V
Battery type Sealed(Default) / Gel / Flooded
Equalize charging
voltage* Sealed:14.6V/ Gel: No/ Flooded:14.8V
Boost charging voltage* Sealed:14.4V/ Gel:14.2V/ Flooded:14.6V
Float charging voltage* Sealed/Gel/Flooded:13.8V
Low voltage reconnect
voltage* Sealed/Gel/Flooded:12.6V
Low voltage disconnect
voltage* Sealed/Gel/Flooded:11.1V
Self-consumption =10mA/12V;=18mA/24V; =14.5mA/36V; =17mA
Temperature
compensation coefficient -3mV/¿/2V(25¿)
Grounding Common positive
USB output 5VDC/2.4A
Overall dimension 142x85x41.5
mm
160x94.9x49.3
mm
181x100.9x59.8
mm
194x118.4x63.8
mm
214x128.7x72.2
mm
Terminals 12AWG(4mm2) 8AWG(10mm2) 6AWG(16mm2) 6AWG(16mm2) 3AWG(25mm2)
Net weight 0.22kg 0.35kg
0.55kg 0.76kg 1.02kg
0.58kg 0.88kg 1.04kg
Enclosure IP30
Working environment
temperature -25¿~+55¿(Product can work continuously at full load)
Humidity range =95% (N.C.)
